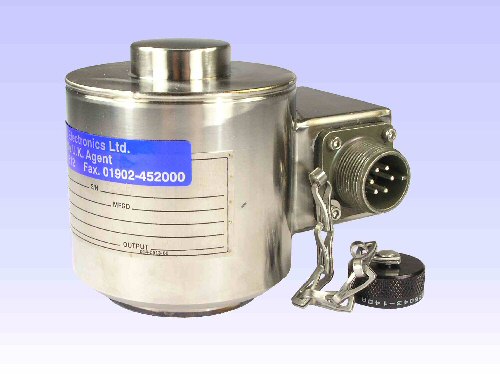

Model WG Compression Load Cell

Very high accuracy
Stainless steel
High Range
Infinite resolution
Miniature



A load cell or force sensor is a device which converts load or force into an electrical signal.

A load cell should be mounted on a hard, flat surface. A compression load cell measures the force applied to the load button.

Care should be taken to ensure that the load sensor is not exposed to load or force in excess of its capability. The range of compression load cell selected should therefore be appropriate for the maximum force (including transient forces) that can be applied to it.


This series of transducer is a strain gauge type transducer and has a mV output which may require an amplifier. We can offer a variety of high quality, low noise and high precision strain gauge amplifiers.


How it Works - Strain Gauge Load Cell

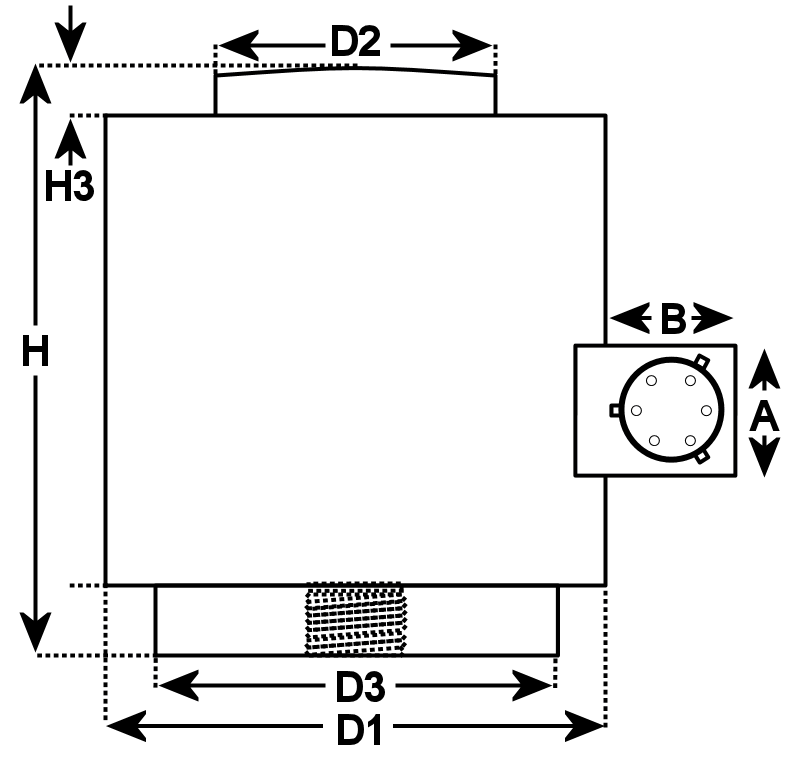

A  =  38mm
B  =  32mm
Type Range D1 H Mounting thread D2 D3 H3
SLC-WG010000 10000lbs (44kN) 73mm 83mm 1/2-20 UNF-2B 32mm 54mm 10mm
SLC-WG015000 15000lbs (67kN) 73mm 83mm 1/2-20 UNF-2B 32mm 54mm 10mm
SLC-WG025000 25000lbs (111kN) 73mm 83mm 1/2-20 UNF-2B 32mm 54mm 10mm
SLC-WG050000 50000lbs (222kN) 73mm 83mm 1/2-20 UNF-2B 32mm 54mm 10mm
SLC-WG100000 100000lbs (445kN) 105mm 127mm 3/4-16 UNF-2B 59mm 93mm 13mm
SLC-WG200000 200000lbs (890kN) 152mm 184mm 3/4-16 UNF-2B 80mm 135mm 22mm
SLC-WG300000 300000lbs (1.3MN) 152mm 184mm 3/4-16 UNF-2B 80mm 135mm 22mm
SLC-WG500000 500000lbs (2.2MN) 165mm 229mm 3/4-16 UNF-2B 94mm 148mm 14mm

Specification
Excitation/supply (calibrated)10Vdc Operating temperature range (minimum) -34°C
Output2mV/V Operating temperature range (maximum) 85°C
Bridge resistance350 Ohms Compensated temperature range (minimum) 16°C
Gauge typefoil Compensated temperature range (maximum) 71°C
Linearity error±0.03 (>50K = ±0.05)% F.S. Deflection at full scale 0.079mm
Hysteresis±0.05 (>50K = ±0.05)% F.S. Creep 0.03% F.S. (20 minutes)
Repeatability±0.01% F.S. Over-range capacity 50% F.S.
ResolutionInfinite Major construction material stainless steel
Temperature coefficient (zero)±0.0027% F.S. /°C Electrical termination Connector, mating part = MS3106A-14S-6S (or equivalent) (SEN1006)
Temperature coefficient (span)±0.0014% rdg /°C


Options and accessories
Electronics


All dimensions and specifications are nominal. www.rdpe.com/ex/slc-wg.htm 20060928
Due to our policy of on-going development, specifications may change without notice. Any modification may affect some or all of the specifications for our equipment.
