Model FP2000 Pressure Transducer |
| |
|
|||||||
|
||||||||
| This is a small selection of the available range | ||||||||||||||||
 |  |  | |||||||||||||||

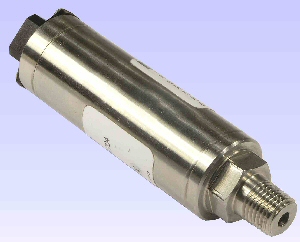

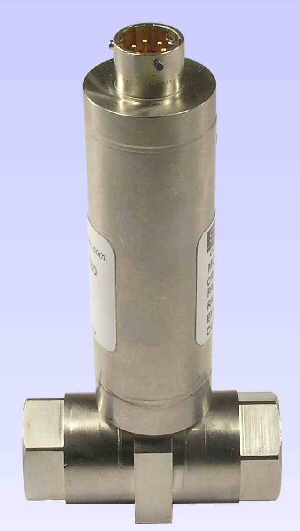

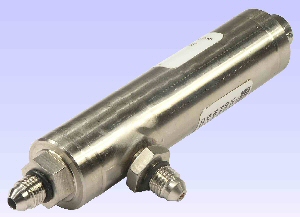

| FPA / FPB / FPG / FPV | FDW | FDD | |||||||||||||||
| The FP2000 series offers a modular selection which increases choice and reduces delivery time. We try to stock the various elements and simply weld them together to your requirements. This unit is available in gauge, absolute, differential and barometric versions.. A gauge pressure transducer measures with respect to atmospheric pressure. An absolute pressure transducer measures with respect to a vacuum. A wet/wet differential pressure transducer measures the difference in the pressure applied to its two ports, both ports may contain liquid or gas. This results in a wide range of mechanical and electrical options in a shorter lead-time. | |||||||||||||||||
| Mechanical dimensions for body, electrical and port options | |||||||||||||
| Electrical termination |
| ||||||||||||
| |||||||||||||
| Pressure port thread |
| ||||||||||||
| Type | FPG | Gauge pressure | A gauge pressure transducer measures with respect to atmospheric pressure | ||||||||||
| FPA | Absolute pressure | An absolute pressure transducer measures with respect to a vacuum | |||||||||||
| FPB | Barometric pressure | A barometric transducer measures low pressure levels with respect to a vacuum | |||||||||||
| FPV | Vacuum pressure | A vacuum transducer measures the depression below atmospheric pressure | |||||||||||
| FDD | Differential pressure (Wet/dry) | A wet/dry differential pressure transducer measures the difference in the pressure applied to its two ports, one of the ports can only contain a dry gas | |||||||||||
| FDW | Differential pressure (Wet/wet) | A wet/wet differential pressure transducer measures the difference in the pressure applied to its two ports, both ports may contain liquid or gas | |||||||||||
| Accuracy | 1 | 0.1% Thermal error band = 0.5% |
| ||||||||||
| 2 | 0.25% Thermal error band = 1% |
| |||||||||||
| Range | UQ | 16 to 32''Hg (54 to 108kPaA) |
| ||||||||||
| UR | 26 to 32''Hg (88 to 108kPaA) | ||||||||||||
| UG | 0 to 30''Hg (0 to 102kPaA) | ||||||||||||
| WA | 10''H2O (2,5kPa) |
| |||||||||||
| AP | 1psi (7kPa) | ||||||||||||
| AT | 5psi (34kPa) |
| |||||||||||
| AV | 10psi (69kPa) |
| |||||||||||
| BJ | 15psi (103kPa) |
| |||||||||||
| BM | 30psi (207kPa) |
| |||||||||||
| BN | 50psi (345kPa) | ||||||||||||
| BR | 100psi (689kPa) | ||||||||||||
| CJ | 150psi (1MPa) | ||||||||||||
| CN | 250psi (2MPa) | ||||||||||||
| CR | 500psi (3MPa) | ||||||||||||
| CT | 750psi (5MPa) | ||||||||||||
| CV | 1000psi (7MPa) | ||||||||||||
| DJ | 1500psi (10MPa) |
| |||||||||||
| DM | 2500psi (17MPa) | ||||||||||||
| DR | 5000psi (34MPa) | ||||||||||||
| DT | 7500psi (52MPa) | ||||||||||||
| DV | 10000psi (69MPa) | ||||||||||||
| Output | 2u | mV/V |
| ||||||||||
| 2e | 0 to 5V | Supply voltage = 9 to 28V | |||||||||||
| 2f | 0 to 10V | Supply voltage = 15 to 28V | |||||||||||
| 2n | 4-20mA (intrinsically safe ,<=5000psi) | Supply voltage = 9 to 28V | |||||||||||
| 2y | 4-20mA | Supply voltage = 9 to 28V | |||||||||||
| Pressure port thread | 5a | 1/4-18 NPT female | |||||||||||
| 5b | 1/4-18 NPT male | ||||||||||||
| 5c | 7/16-20 UNF female | ||||||||||||
| 5d | 7/16-20 UNF male | ||||||||||||
| 5f | G1/4B female | ||||||||||||
| 5g | G1/4B male | ||||||||||||
| Electrical termination | 6a | PT1H-10-6P (vented) | |||||||||||
| 6m | DIN43650 (vented) | ||||||||||||
| 6n | DIN (vented) | ||||||||||||
| 6q | integral cable (vented) | Cable length = 1,5m | |||||||||||
| 6r | integral cable with conduit fitting (vented) | Cable length = 1,5m |
| Compensated temperature range | |||
| Type | Range | Compensated temperature range | Compensated temperature range (Option code 1y) Thermal error band = ±1% |
|---|---|---|---|
| FPG & FPA | 10''H2O (2,5kPa) | 4°C to 43°C | 4°C to 60°C |
| 1psi (7kPa) | 4°C to 43°C | 4°C to 60°C | |
| 5psi (34kPa),10psi (69kPa) & 15psi (103kPa) | 4°C to 60°C | -7°C to 77°C | |
| >15psi (103kPa) | 4°C to 60°C | -18°C to 82°C | |
| FPB | 26 to 32''Hg (88 to 108kPaA) | 16°C to 43°C | 10°C to 60°C |
| 16 to 32''Hg (54 to 108kPaA) | 4°C to 60°C | -1°C to 77°C | |
| 0 to 30''Hg (0 to 102kPaA) | 4°C to 43°C | -18°C to 77°C | |
| FPV | 10''H2O (2,5kPa) | 4°C to 43°C | 4°C to 60°C |
| 1psi (7kPa) | 4°C to 43°C | 4°C to 60°C | |
| 5psi (34kPa),10psi (69kPa) & 15psi (103kPa) | 4°C to 60°C | 4°C to 77°C | |
| FDD & FDW | 10''H2O (2,5kPa) & 5psi (34kPa) | 4°C to 43°C | 4°C to 60°C |
| >5psi (34kPa) | 4°C to 60°C | -17°C to 77°C | |
| General Specification | |||||
|---|---|---|---|---|---|
| FPG/FPA | FPV | FPB | FDW | FDD | |
| Over-range capacity | <=1000psi 4X F.S. (3000psi maximum) >=15000psi 4X F.S. (15000psi maximum) | <=1000psi 4X F.S. (3000psi maximum) | <=1000psi 4X F.S. (3000psi maximum) | Port 1 = 4X F.S. (3000psi maximum) Port 2 = 4X F.S. (250psi maximum) | Port 1 = 4X F.S. (3000psi maximum) Port 2 = 4X F.S. (250psi maximum) |
| Line pressure | - | - | - | 500 psi | 500p psi |
| Port material | Ha C276 & 316L ss | Ha C276 & 316L ss | Ha C276 & 316L ss | Ha C276 & 316L ss | Port 1 = Ha C276 & 316L ss Port 2 = Dry air |
| Part number structure | |||||||||
| Type | Accuracy | Range | Output | Pressure port thread | Electrical termination | Compensated temperature range (Option code 1y) | Option code 3d | CE | Option code 14c |
| ??? | ? | ?? | 2? | 5? | 6? | 0 | 0 | 9e Output 2n = 9f | 0 |
| Example - FDW-1-CN-2y-5b-6a-1y-0-9e-0 | ||
|---|---|---|
| Type | Differential pressure (Wet/wet) | FDW |
| Accuracy | 0.1% | 1 |
| Range | 250psi (2MPa) | CN |
| Output | 4-20mA | 2y |
| Pressure port thread | 1/4-18 NPT male | 5b |
| Electrical termination | PT1H-10-6P (vented) | 6a |
| Option code 1y | Compensated temperature range (Option code 1y) | 1y |
| Option code 3d | - | 0 |
| Option code 9e/9f | CE | 9e |
| Option code 14c | - | 0 |
| ||||||||
|
||||
