Menu of Displacement Transducers

General industrial
Submersible
Extreme Environment Displacement Transducer
Temposonics magnetostrictive transducers

ACT LVDT Displacement Transducer

High accuracy
High cycle life
Infinite resolution
Stainless steel
Linearity (best)
Lowest range±12.5mm
Highest range±470mm
Smallest length/height133mm
Smallest width/diameter20.6mm

D5 & D6 LVDT Displacement Transducer

High accuracy
Miniature
Infinite resolution
High cycle life
Stainless steel
Linearity (best)±0.1% F.S.
Lowest range±0.25mm
Highest range±12.5mm
Smallest length/height49mm
Smallest width/diameter9.5mm

DCC Series 4-20mA 2-wire Output Displacement Transducer

4-20mA 2 wire interface
Stainless steel
High accuracy
High cycle life
High resolution
Electrical interface for industrial applcations
Linearity (best)±0.1% F.S.
Lowest range5mm
Highest range940mm
Smallest length/height83mm
Smallest width/diameter20.6mm

DCTH Series DC to DC LVDT Displacement Transducer

High accuracy
High resolution
Voltage / 4-20mA output
High cycle life
Stainless steel
Linearity (best)±0.1% F.S.
Lowest range±2.5mm
Highest range±470mm
Smallest length/height64mm
Smallest width/diameter20.6mm

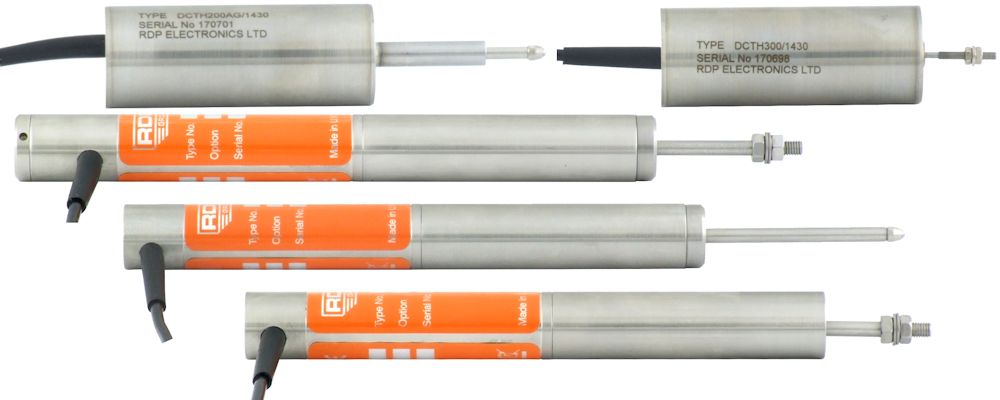

DCV Series Isolated 0 to 10V Output Displacement Transducer

High cycle life
Stainless steel
High accuracy
High resolution
Input/output isolation
Voltage output
Electrical interface for industrial applcations
Linearity (best)±0.1% F.S.
Lowest range5mm
Highest range940mm
Smallest length/height83mm
Smallest width/diameter20.6mm

GT Precision LVDT Gauging Transducer

Very high accuracy
Precision linear bearings
Miniature
High cycle life
Stainless steel
Infinite resolution
Linearity (best)±0.1% F.S.
Lowest range±0.5mm
Highest range±5mm
Smallest length/height26mm
Smallest width/diameter8.0mm

LDC Series DC to DC LVDT Displacement Transducer

High accuracy
High cycle life
Low supply voltage
Input/output isolation
High resolution
Voltage output
Stainless steel
Linearity (best)±0.1% F.S.
Lowest range±12.5mm
Highest range±470mm
Smallest length/height182mm
Smallest width/diameter20.6mm


All dimensions and specifications are nominal. www.rdpe.com/uk/men-disp.htm 20170119
Due to our policy of on-going development, specifications may change without notice. Any modification may affect some or all of the specifications for our equipment.
