Menu of Load Cells (Force Sensors)

All
Compression load cell
Tension/Compression Load Cell (Universal Load Cell)
Tension Load Cell

Model 13 Compression Load Cell

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.5% F.S.
Lowest range250grams (2.5N)
Highest range1000lbs (4.4kN)
Smallest length/height3.3mm
Smallest width/diameter9.7mm

Model 31 Tension/Compression Load Cell (Universal Load Cell)

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.15% F.S.
Lowest range250grams (2.5N)
Highest range10000lbs (44kN)
Smallest length/height19.1mm
Smallest width/diameter25.4mm

Model 34 Tension/Compression Load Cell (Universal Load Cell)

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.15% F.S.
Lowest range250grams (2.5N)
Highest range1000lbs (4.4kN)
Smallest length/height44.5mm
Smallest width/diameter25.4mm

Model 41 Tension/Compression Load Cell (Universal Load Cell)

High accuracy
Stainless steel
Infinite resolution
High cycle life
Linearity (best)0.1% F.S.
Lowest range5lbs (22N)
Highest range500000lbs (2.2MN)
Smallest length/height20mm
Smallest width/diameter64mm

Model 43 Compression Load Cell

High accuracy
High cycle life
Stainless steel
Infinite resolution
Linearity (best)0.1% F.S.
Lowest range5lbs (22N)
Highest range500000lbs (2.2MN)
Smallest length/height30mm
Smallest width/diameter64mm

Model 45 Tension/Compression Load Cell (Universal Load Cell)

Very high accuracy
Stainless steel
High overload capacity
Infinite resolution
Fatigue rated
Linearity (best)0.04% F.S.
Lowest range250lbs (1.1kN)
Highest range100000lbs (445kN)
Smallest length/height35mm
Smallest width/diameter105mm

Model 47 Tension/Compression Load Cell (Universal Load Cell)

Very high accuracy
Stainless steel
High overload capacity
Infinite resolution
Fatigue rated
Linearity (best)0.01% F.S.
Lowest range250lbs (1.1kN)
Highest range100000lbs (445kN)
Smallest length/height63mm
Smallest width/diameter105mm

Model 53 Compression Load Cell

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.25% F.S.
Lowest range5lbs (22N)
Highest range50000lbs (222kN)
Smallest length/height16mm
Smallest width/diameter25mm

Model 73 Compression Load Cell

Infinite resolution
High accuracy
High overload capacity
Stainless steel
Fatigue rated
Linearity (best)0.1% F.S.
Lowest range50lbs (222N)
Highest range200000lbs (890kN)
Smallest length/height30mm
Smallest width/diameter76mm

Model 75 Tension/Compression Load Cell (Universal Load Cell)

High accuracy
Stainless steel
Infinite resolution
Fatigue rated
Linearity (best)0.1% F.S.
Lowest range50lbs (222N)
Highest range200000lbs (890kN)
Smallest length/height25mm
Smallest width/diameter76mm

Model D Through-Hole Compression Load Cell

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.5% F.S.
Lowest range250grams (2.5N)
Highest range30000lbs (133kN)
Smallest length/height3.8mm
Smallest width/diameter12.7mm

Model LFH-7i Compression Load Cell

Stainless steel
Infinite resolution
Miniature
Linearity (best)0.7% F.S.
Lowest range250lbs (1.1kN)
Highest range10000lbs (44kN)
Smallest length/height9.7mm
Smallest width/diameter12.7mm

Model RF Tension Load Cell

Stainless steel
High Range
Infinite resolution
Linearity (best)0.15% F.S.
Lowest range2000lbs (9kN)
Highest range200000lbs (890kN)
Smallest length/height108mm
Smallest width/diameter38mm

Model RLC Compression Load Cell

Very high accuracy
Infinite resolution
Low cost
Linearity (best)0.03% F.S.
Lowest range250kgf (2.5kN)
Highest range15000kgf (147kN)
Smallest length/height28mm
Smallest width/diameter80mm

Model RLS Single-Point Compression Load Cell

Very high accuracy
Infinite resolution
Low cost
Linearity (best)0.02% F.S.
Lowest range5kgf (49N)
Highest range100kgf (981N)
Smallest length/height63.5mm
Smallest width/diameter118mm

Model RLT Tension Load Cell

Very high accuracy
Infinite resolution
Low cost
Linearity (best)0.03% F.S.
Lowest range5kgf (49N)
Highest range2500kgf (25kN)
Smallest length/height63.5mm
Smallest width/diameter50.8mm

Model RLU Tension/Compression Load Cell (Universal Load Cell)

Very high accuracy
Infinite resolution
Low cost
Linearity (best)0.03% F.S.
Lowest range250kgf (2.5kN)
Highest range10000kgf (98kN)
Smallest length/height25mm
Smallest width/diameter75mm

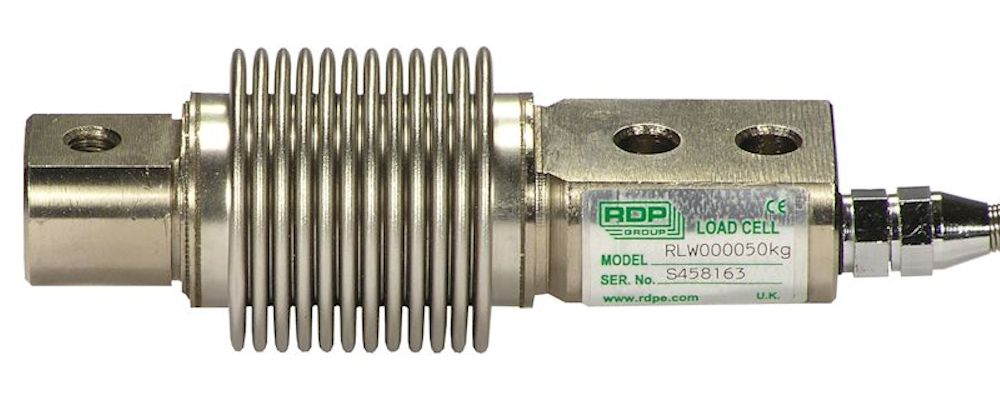

Model RLW Industrial Weighing Compression Load Cell

Very high accuracy
Infinite resolution
Low cost
Linearity (best)0.03% F.S.
Lowest range10kgf (98N)
Highest range1500kgf (14.7kN)
Smallest length/height120mm
Smallest width/diameter45mm

Model RM Tension Load Cell

Stainless steel
High Range
Infinite resolution
Linearity (best)0.15% F.S.
Lowest range2000lbs (9kN)
Highest range200000lbs (890kN)
Smallest length/height66mm
Smallest width/diameter38mm

Model TH Through-Hole Compression Load Cell

Stainless steel
High Range
Infinite resolution
Miniature
Linearity (best)0.3% F.S.
Lowest range15000lbs (67kN)
Highest range200000lbs (890kN)
Smallest length/height38mm
Smallest width/diameter38mm

Model UG Tension/Compression Load Cell (Universal Load Cell)

Very high accuracy
Stainless steel
High Range
Infinite resolution
Linearity (best)0.03% F.S.
Lowest range100lbs (445N)
Highest range200000lbs (890kN)
Smallest length/height70mm
Smallest width/diameter51mm




All dimensions and specifications are nominal. www.rdpe.com/uk/men-load.htm 20150929
Due to our policy of on-going development, specifications may change without notice. Any modification may affect some or all of the specifications for our equipment.
