GAUGE/ABSOLUTE PRESSURE |
|  |  | Very high accuracy | | Stainless steel | | Gauge pressure | | Absolute pressure | | High resolution | | 4-20mA output |
| | Linearity (best) | ±0.1% F.S. | | Lowest range | 5psi (345mBar) | | Highest range | 20000psi (1379bar) | | Smallest length/height | 84mm | | Smallest width/diameter | 38mm |
|
|
|  | | High accuracy | | Stainless steel | | Absolute pressure | | Gauge pressure | | High resolution | | 4-20mA output |
| | Linearity (best) | ±0.25% F.S. | | Lowest range | 5psi (345mBar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 66mm | | Smallest width/diameter | 38mm |
|
|
|  | | Flush diaphragm | | Stainless steel | | Infinite resolution | | Gauge pressure |
| | Linearity (best) | ±0.5% F.S. | | Lowest range | 15psi (1bar) | | Highest range | 15000psi (1034bar) | | Smallest length/height | 46mm | | Smallest width/diameter | 9.0mm |
|
|
|  | | Flush diaphragm | | Stainless steel | | Infinite resolution | | Gauge pressure |
| | Linearity (best) | ±0.5% F.S. | | Lowest range | 15psi (1bar) | | Highest range | 15000psi (1034bar) | | Smallest length/height | 40mm |
|
|
|  | | Stainless steel | | High Range | | Infinite resolution | | Absolute pressure | | Gauge pressure |
| | Linearity (best) | ±0.3% F.S. | | Lowest range | 0.5psi (34.5mBar) | | Highest range | 30000psi (2068bar) | | Smallest length/height | 53mm | | Smallest width/diameter | 57mm |
|
|
|  | | Very high accuracy | | Internal amplifier | | Stainless steel | | Absolute pressure | | Gauge pressure | | Differential pressure | | High resolution |
| | Linearity (best) | ±0.1% F.S. | | Lowest range | 10''H2O (25mbar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 74mm | | Smallest width/diameter | 29mm |
|
|
|  | | High Range | | Gauge pressure | | Infinite resolution |
| | Linearity (best) | ±0.5% F.S. | | Lowest range | 50000psi (3447bar) | | Highest range | 100000psi (6895bar) | | Smallest length/height | 74mm | | Smallest width/diameter | 38mm |
|
|
|  | | Stainless steel | | Infinite resolution | | Gauge pressure |
| | Linearity (best) | ±0.5% F.S. | | Lowest range | 1psi (69mBar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 57mm | | Smallest width/diameter | 29mm |
|
|
|  | | Flush diaphragm | | Stainless steel | | Gauge pressure | | Miniature |
| | Linearity (best) | ±1% F.S. | | Lowest range | 150psi (10.3bar) | | Highest range | 20000psi (1379bar) | | Smallest length/height | 18mm | | Smallest width/diameter | 13mm |
|
|
| | | Very high accuracy | | Stainless steel | | Infinite resolution | | Absolute pressure | | Gauge pressure |
| | Linearity (best) | ±0.05% F.S. | | Lowest range | 10psi (689mBar) | | Highest range | 7500psi (517bar) | | Smallest length/height | 67mm | | Smallest width/diameter | 41mm |
|
|
| | | High accuracy | | Stainless steel | | Infinite resolution | | Absolute pressure | | Gauge pressure | | High Range |
| | Linearity (best) | ±0.1% F.S. | | Lowest range | 1psi (69mBar) | | Highest range | 60000psi (4137bar) | | Smallest length/height | 53mm | | Smallest width/diameter | 38mm |
|
|
| | | High accuracy | | Stainless steel | | High Range | | Infinite resolution | | Absolute pressure | | Gauge pressure |
| | Linearity (best) | ±0.15% F.S. | | Lowest range | 1psi (69mBar) | | Highest range | 60000psi (4137bar) | | Smallest length/height | 53mm | | Smallest width/diameter | 57mm |
|
|

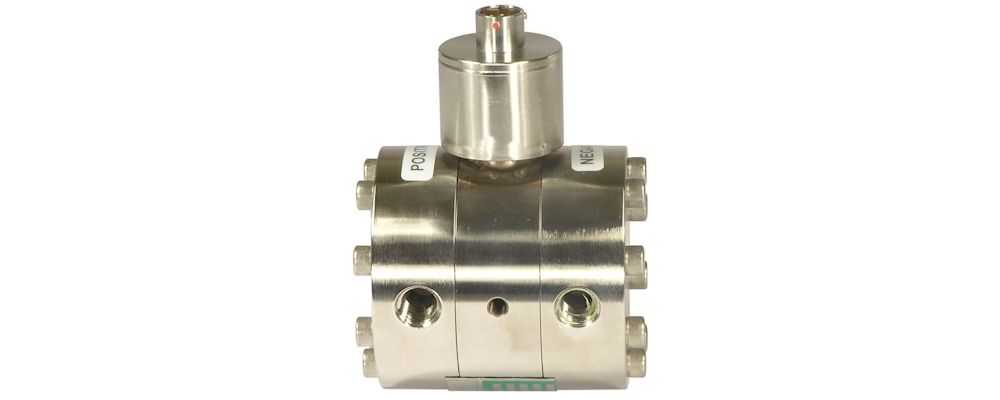

DIFFERENTIAL PRESSURE TRANSDUCER |
| | | Very high accuracy | | Internal amplifier | | Stainless steel | | Absolute pressure | | Gauge pressure | | Differential pressure | | High resolution |
| | Linearity (best) | ±0.1% F.S. | | Lowest range | 10''H2O (25mbar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 74mm | | Smallest width/diameter | 29mm |
|
|
|  | | Stainless steel | | High overload capacity | | High Range | | Infinite resolution | | Differential pressure |
| | Linearity (best) | ±0.3% F.S. | | Lowest range | 50psi (3bar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 57mm | | Smallest width/diameter | 57mm |
|
|
|  | | High line pressure | | Stainless steel | | High overload capacity | | High Range | | Infinite resolution | | Differential pressure |
| | Linearity (best) | ±0.25% F.S. | | Lowest range | 50psi (3bar) | | Highest range | 7500psi (517bar) | | Smallest length/height | 64mm | | Smallest width/diameter | 64mm |
|
|
| | | High accuracy | | High line pressure | | Stainless steel | | High overload capacity | | High Range | | Infinite resolution | | Differential pressure |
| | Linearity (best) | ±0.15% F.S. | | Lowest range | 50psi (3bar) | | Highest range | 7500psi (517bar) | | Smallest length/height | 64mm | | Smallest width/diameter | 64mm |
|
|
|  | | High accuracy | | Stainless steel | | High overload capacity | | Infinite resolution | | Differential pressure | | Differential pressure | | Low range/high line |
| | Linearity (best) | ±0.15% F.S. | | Lowest range | 0.5psi (34.5mBar) | | Highest range | 30psi (2bar) | | Smallest length/height | 76mm (maximum) | | Smallest width/diameter | 65mm (maximum) |
|
|
| | | High accuracy | | Stainless steel | | High overload capacity | | High Range | | Infinite resolution | | Differential pressure |
| | Linearity (best) | ±0.15% F.S. | | Lowest range | 50psi (3bar) | | Highest range | 10000psi (689bar) | | Smallest length/height | 57mm | | Smallest width/diameter | 57mm |
|
|
| |
| |
